0.75-1.0mm Thickness PPGI Racking Shelf Panel Roll Forming Machine
Rack Shelf Machine Parameters
1. Suitable raw material: 0.75-1.0mm galvanized coil S235JR
2. Material width:300mm - 610mm
3. Forming stations: 16 stations
4. Material of Roller: Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞150
5. Material of Main Shaft: 45# high quality steel (diameter＞50)
6. Driven system: Chain Driven 1.5 inches
7. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 5.5KW
11. Control system:PLC with touch screen
Rack Shelf Machine Components
|
|
|
De-coiler
|
1 set
|
|
Leveling device
|
1 set
|
|
Roll forming machine
|
1 set
|
|
Punching device
|
1 set
|
|
Hydraulic cutting and bending device
|
1 set
|
|
Hydraulic station
|
1 set
|
|
PLC control box
|
1 set
|
|
Safety cover
|
1 set
|
|
Ran out table
|
2 sets
|
|
Control panel
|
1 set
|
Shelf back panel Application
Shelf box panel is commonly used in the manufacturing of shelves for storage systems, such as warehouse racking and retail displays, convenience stores, grocery stores and supermarkets, liquor stores, pharmacy stores, sports nutrition and vitamin stores, hardware stores, discount stores, pet stores, party stores and more.
The panel can be customized in terms of size, thickness, and material composition to meet specific requirements.

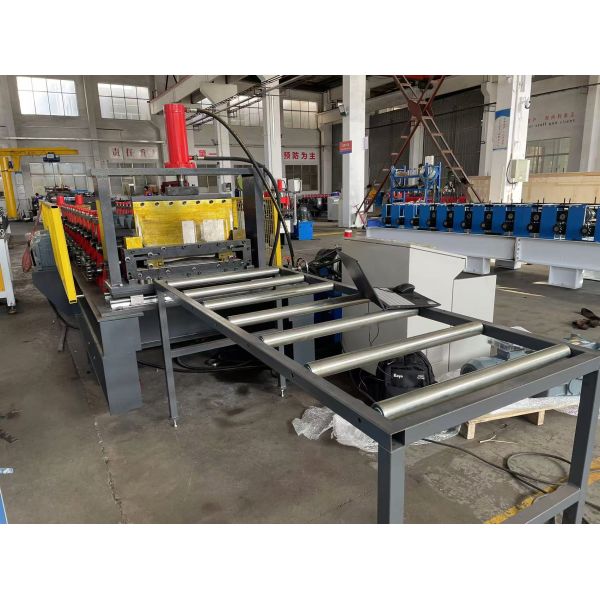

Shelf back panel machine photo
Our Company
Sussman Machinery Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron andsteel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
