20 Roller Stations 2 Layer Roof Panel Roll Forming Machine For Roof Struction

Name: 20 Roller Stations 2 Layer Roof Panel Roll Forming Machine For Roof Struction
Brand: Sussman
Price: 1 USD

Quality 20 Roller Stations 2 Layer Roof Panel Roll Forming Machine For Roof Struction for sale

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Steel thickness : 0.3-0.8mm

Forming speed : 8-12m/min

Roller material : 45# steel

Main shaft diameter : 7.5Kw

Power supply : 380V, 50Hz, 3Phase

Hydraulic pressure : 12Mpa

Voltage : 380V/50HZ3Phase (as customer's request)

Warranty : 12 Months

Contact Now

Double Layer Roof Panel Roll Forming Machine / Double Roll Forming Machine

1. Technical Parameter

Number	Items	UnitType	RF-DL
1	Steel Thickness	mm	0.3-0.8
2	Forming Speed	m/min	8-12
3	Roller stands	stand	20 stands bottom layer; 20 stands top layer
4	Roller Material	mm	45# steel, coated with chrome
	Shaft material and diameter	mm	Ф76MM 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12Mov HRC60-62
11	Machine weight	T	10

2. Machine List

5 ton passive de-coiler	1 set
Guiding Platform	1 set
Main roll forming machine	1 set
Cutting machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Passive Out table	2 units
Safety cover	1 unit

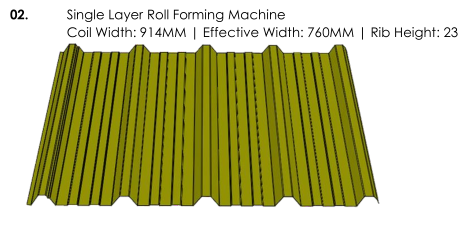

3. Profile Drawing

20 Roller Stations 2 Layer Roof Panel Roll Forming Machine For Roof Struction

4. Main Features

The machine can be used to produce 2 different profiles of corrugated steel sheet

2 wall & 2 roof sheets,

1 wall & roof sheet and Customer can choose the type as your requirement

Variable frequency speed control

Multi-purpose for overlap connection

Auto power off

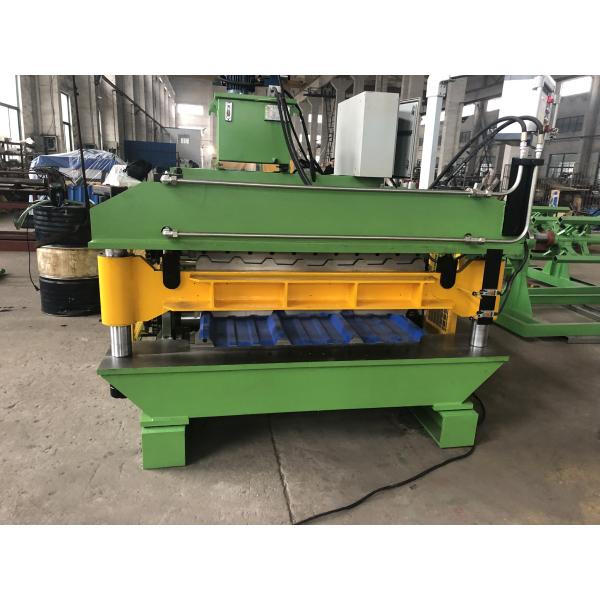

5. Machine Photo

20 Roller Stations 2 Layer Roof Panel Roll Forming Machine For Roof Struction
